Long Life Digital Display Lightning Strike Counter Easy Installation

Name: Long Life Digital Display Lightning Strike Counter Easy Installation
Brand: TSTLP
Price: 1 USD

China Long Life Digital Display Lightning Strike Counter Easy Installation factory

Model Number : TS-LSC4

Certification : CE Compliance

Place of Origin : Guangdong,China

Brand Name : TSTLP

MOQ : Negotiable

Price : Negotiable if good quantity

Packaging Details : By standard export box/carton

Delivery Time : Around 7 working days upon receipt of payment

Payment Terms : 100% TT / LC / Western Union / MoneyGram / WeChat Transfer / Alipay / Wanda Money Transfer / Cash ahead

Supply Ability : 2000 sets/month

Application : Lightning strikes Measurement

Service life of battery : 2+ years

Indicator : 4-digit

Width : 27 mm

Color : Black

Lightning Counter HS Code : 9029109000

Contact Now

Long life digital display lightning counter price - more rival , for easy installation

TS-LSC4 4-digit lightning counter is designed for counting the number of the lightning strikes captured by the early streamer emission lightning conductor or surge from SPDs. TS-LSC4 measures lightning strikes by the induction of current and needs NO external power source.

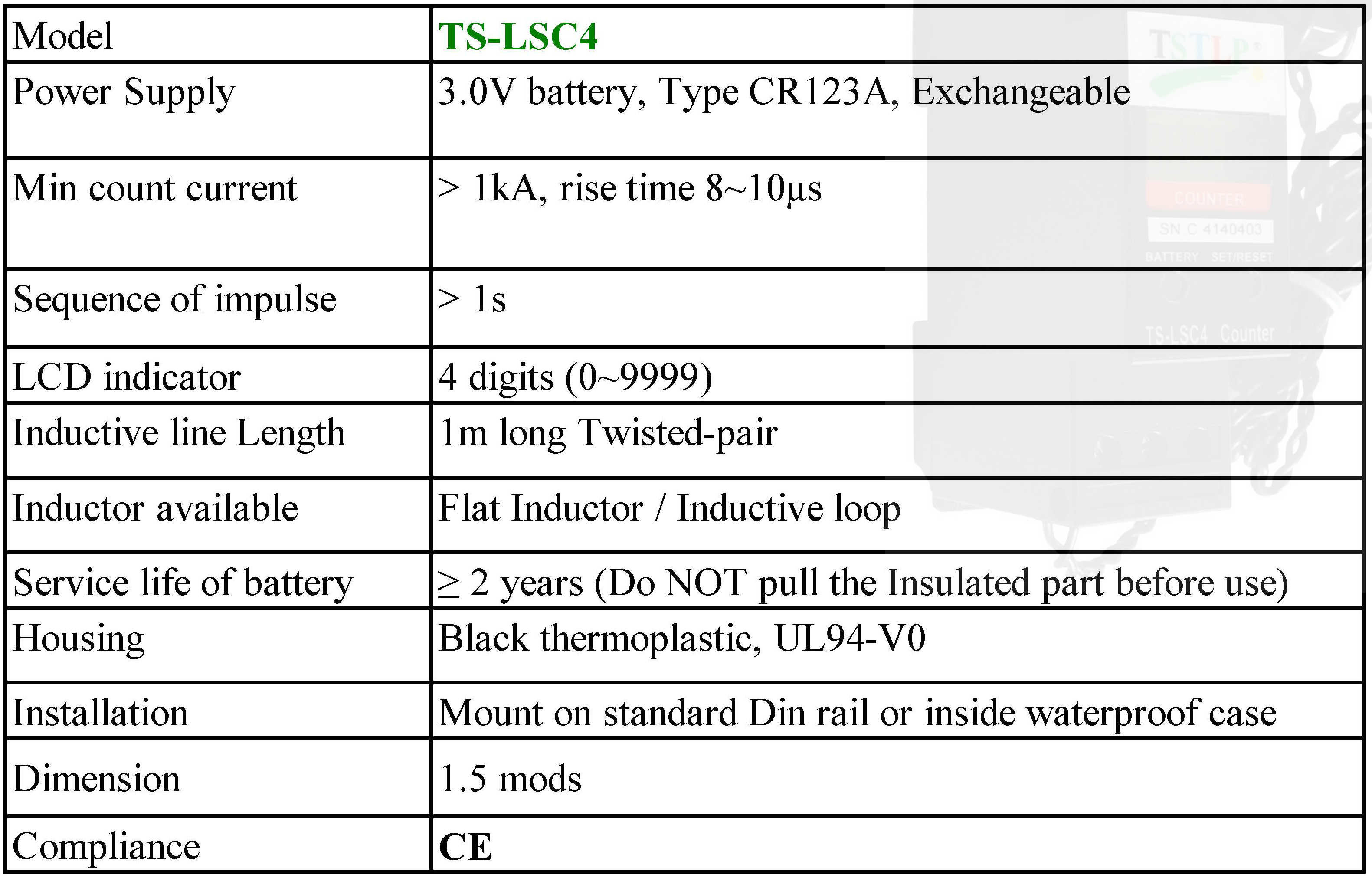

Technical Specification

Long Life Digital Display Lightning Strike Counter Easy Installation

Installation Instructions

TS-LSC4 lightning counter should be installed at a position along the down conductor(or PE Line) length where it can be accessed easily for inspection. Typically TS-LSC4 should be installed approximately 2 m from ground level or alternatively within the earth pit at the lower termination point of the down conductor(copper cable).

When installing the TS-LSC4 Lightning Counter the following should be considered:

Mounted away from areas where damage may occur due to theft,vandalism or nearby operations.
Enclosed in a security enclosure but the display should be kept visible to allow for the checking of recorded strikes.

TS-LSC4 Lightning Strike Counter Installation Diagram

Long Life Digital Display Lightning Strike Counter Easy Installation

PDF Datasheet Download - TSTLP TS-LSC3 & LSC4 Ligh...
